Family House

Family House

Project Details:

  • Project ID: 691
  • Location: Sofia, Bulgaria
  • Design Phase: Developed Design
  • Construction Stage: Project
  • Roof Type: Flat roof
  • Technical Details
  • Ground floor area: 120 sq.m.
  • Gross floor area: 520 sq.m.

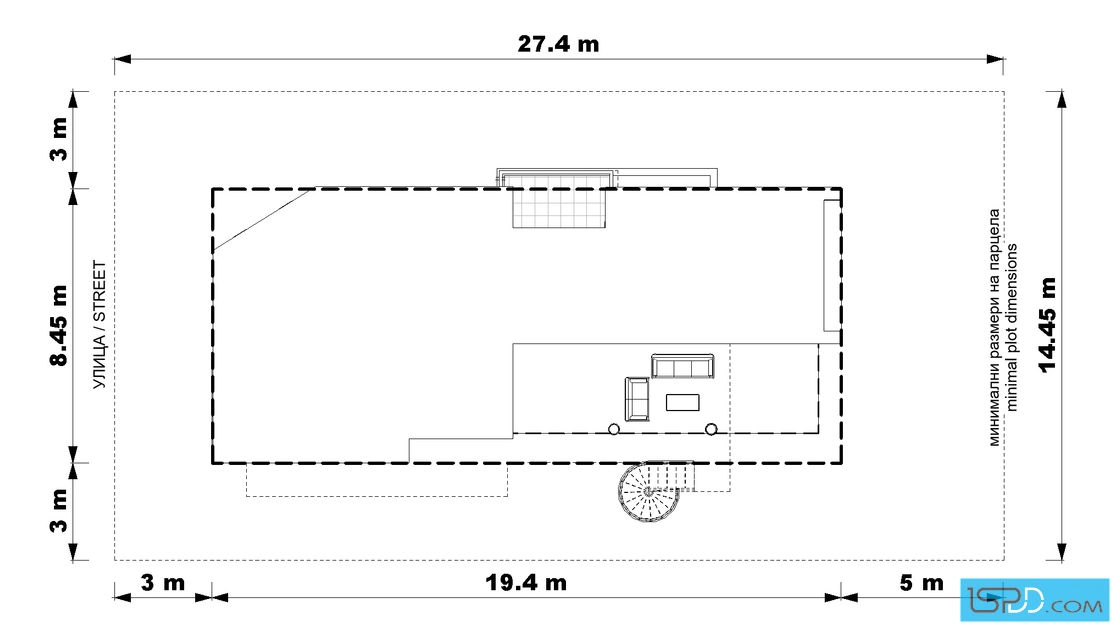

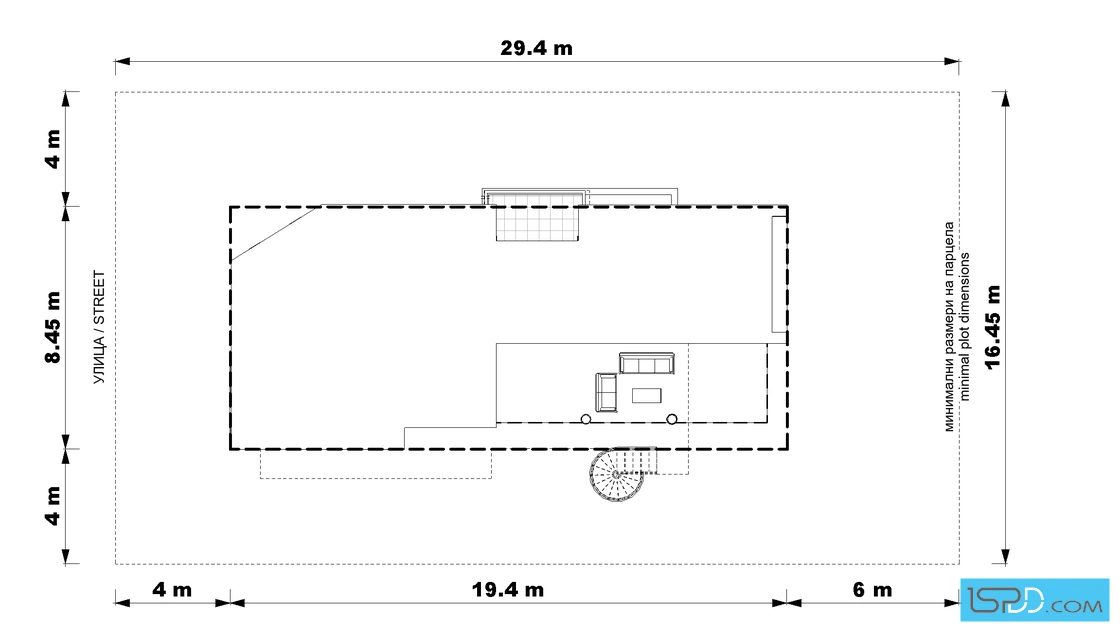

  • Building Size
  • Building Width: 19.40 m.
  • Building Length: 8.45 m.
  • Functionality
  • Basement: Yes
  • Floors: 3
  • Rooms: 6
  • Bedrooms: 4
  • Balconies/Terraces: 6
  • Porch: 1
  • Garage bays: 3
  • Bathrooms: 3

Project Details:

This modern Family House has 4 bedrooms. The house is situated in Sofia, Bulgaria. The gross floor area of the house is 520 sq.m. It is designed by architectural studio ISP Digital Design.



TECHNICAL INDICATORS:
Areas by level: Net area Gross area
Underground Floor Plan: 121,25 m2 149,89 m2
Main/First floor: 95,31 m2 119,90 m2
Covered porchway and covered porch/veranda:   17,96 m2
Upper/Second floor: 126,64 m2 148,58 m2
Third floor: 83,68 m2 101,86 m2
Total area: 426,88 m2 538,19 m2



ARCHITECTURAL AND CONSTRUCTION DATA:
Тype of construction: Monolithic, Reinforced concrete
Surrounding/partition walls: Brick masonry; ceramic blocks
Slope and material of the roof: Flat roof with waterproofing
Thermal insulation system: External thermal insulation - EPS or rockwool insulation
Type of the joinery: PVC or aluminium joinery with double or triple glazing
Materials on the facade: mineral plaster; stone cladding; decorative HPL panels

691 N/A

Floor Plans:

Underground Floor Plan

Underground Floor Plan

Main Floor Plan

Main Floor Plan

Upper Floor Plan

Upper Floor Plan

Third Floor Plan

Third Floor Plan
